Thread Book Sewing Machines & Wire Stitching Machines
Wire Stitching Machine
Video of Wire Stitching Machine
Technical Specifications
Capacity
Center Stitching 2 Sheets to 5/8 inches ( 15.5 mm )
Side Stabbing 3/4 inch ( 21 mm )
Wire Sizes
26 to 20 S.W Gauge
Speed
200 Staples per minute
Staple Crown
12.5 mm
Electrical
Load 1/2 HP Motor
Supply 220 volts Ac 50 Hz 1 Phase
Floor Area
27 x 24 inch ( 690 x 610 mm )
Net Weight
150 kgs
Gross Weight
250 kgs.
Vicker Model Wire Stitching Machine
Technical Specifications
1"
1-1/4"
1-1/2"
Capacity
4 - 450 sheets
10 - 400 sheets
10 - 450 sheets
Wire Sizes
24 to 20 S.W Gauge
24 to 20 S.W Gauge
24 to 20 S.W Gauge
Speed
170 Stitches per min.
170 stitches per min.
150 stitches per min.
H.P Reqd
1 H.P
1 H.P
1 H.P
Space Reqd
24" x 30" x 42"
24" x 48" x 58"
24" x 48" x 58"
Net Weight
200 kgs
225 kgs
300 kgs
GrossWeight
350 kgs
400 kgs
450 kgs
Double Head Wire Stitching Machine
Technical Specifications
Capacity
2 Sheets to 150 sheets ( 1/2 inch) (12 mm
Wire Sizes
24 to 21 S.W Gauge
Speed
200 stitches per minute
H.P required
0.50 HP
Space Needed
24" x 30" x 42"
Net Weight
200 kg
Gross Weight
350 kg
Box Stitching Machine
Technical Specifications
Size of Machine
20" , 30" , 36" , 42" , 48" & 60"
Capacity
2 Ply to 9 Ply
Speed
200 Stitches per minute
H.P Required
0.50 HP
Net Weight
250 kg
Gross Weight
400 kg
Available in Straight , Angular , Bottom & Flap Sealing.

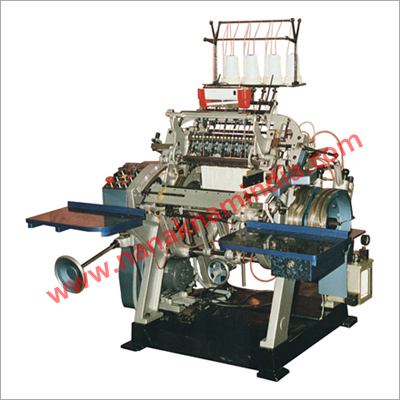

Thread Book Sewing Machine
Profile :
The Sewing Machines is one kind of book binding machinery that sews signatures which have been gathered to form book blocks. It can widely used for paperback soft cover or hard case books.
Output :
The Construction and the working of the machine permits a maximum speed of up to 70 sections per minute. (Actual productivity is related to operator's efficiency of feeding the signatures.
Technical Specifications
Largest size of the book
420 x 250 mm ( 16 1/2" x 9" )
Smallest Size of the book
115 x 100 mm ( 4 1/2" x 3" )
Net Weight Approx.
675 kg
Gross Weight Approx.
910 kg
Speed
Up to 70 sections per minute
Motor
0.37 KW ( 0.5 Hp ) @ 1400 rpm
Space Required
1.5 x 1.4 m ( 5' x 4.7' ) approx.
Shipping Space
2.1 m ( 2.6 cubic yards ) approx.
Paper Shredding Machine
Profile :
This Paper Shredding Machine is ideally suited for heavy duty application up to 20 sheets of "A4" size computer printouts or lottery tickets and any other confidential documents which need to be shredded for security reasons. Reverse switch in case of an overload.
