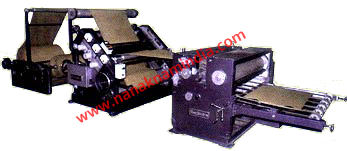

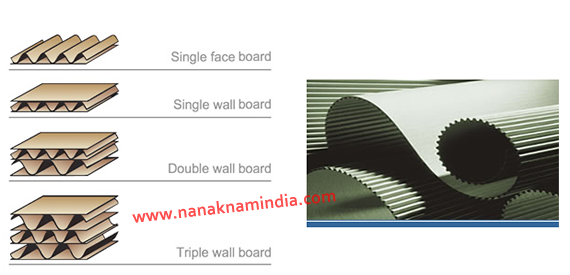

Profile: This high speed single facer offers a high rate of production & enhances efficiency. The rolls are mounted on roller bearings for smooth running & longer life, minutely finished flute rolls result in perfect formation of flutes. Hydraulic lifting reel stand is provided with the above machine. Reel to sheet cutter is synchronized with the machine. The machine is attached with P.I.V Gear unit to cut into the required sizes.
Technical Data
Size
52"
62"
75"
Output (PM)
120 ft
120 ft
120 ft
Power (H.P)
8.5 H.P
11 H.P
15 H.P
Heating Load
33 K.W
39 K.W
On steam
Heavy Duty Oblique Type
Profile: High Speed Single Phase Paper Corrugating Machine Bush mounted for manufacturing 2 Ply Corrugated board with motorised elf loading reel stand with double arm fitting & twin unwinding shaft for paper reels.
Technical Specifications
Size
42"
52"
62"
Output ( PM )
100 ft
100 ft
100 ft
Heating Load
27 kw
32 kw
35 kw
Power ( HP )
7 HP
7 HP
10.5 HP
Vertical Type Single Phase Paper Corrugating Machine
Profile:
Single Phase paper corrugated machine. Bush mounted for manufacturing 2 Ply corrugated board , simple to operate with manual loading twin shaft reel stand.
Technical Specifications
Size
42"
45"
52"
62"
Output ( PM )
70 ft
70 ft
70 ft
70 ft
Heating Load
21.6 kw
23.4 kw
27 kw
32.4 kw
Power ( HP )
3 HP
3 HP
5 HP
7.5 HP
Board Cutter
Profile:
This heavy duty hand operated machine is used for cutting paper or corrugated board.
Technical Specifications
Table Size
48 x 62"
58 x 66"
68" x 70"
Cutting width
42"
52"
62"
Back Working Length
60"
64"
68"
Front working
18"
18"
18"
Sheet Pasting Machine
Profile: Hand Fed sheet pasting machine is useful for gluing fluted side of board for making 3 , 5 , 7 ply corrugated board.
Technical Specifications
Size
72"
84"
100"
Output ( PM )
60 Mtrs.
60 Mtrs.
60 Mtrs.
H.P Required
0.5 HP
0.5 HP
1 HP
Sheet Pressing Machine
Profile:
Sheet Pressing Machine is used for pressing of corrugated sheet. The glued sheets which are then processed on pasting machine are piled on lower plate & then pressure is applied for some time by lowering upper moving plate.
Technical Specifications
Size
65" x 75"
65" x 105"
75 x 120"
Height of Machine
84"
84"
84"
Pressing Height
54"
54"
54"
H.P Required
2 HP
3 HP
3 HP
Rotary Sheat Machine
Video of Rotary Sheat Machine
Profile:
High Speed reel to sheet cutter as well as 2 ply corrugated board. This machine can be operated in alignment of corrugating machine instead of rewind & making rolls of single facer.
Technical Specifications
Size
52"
62"
Cutting lead ( Min /Max )
20" / 100"
20" / 100"
Power ( HP)
3 HP
3 HP
4 Bar Rotary Slithering & Creasing Machine
Profile:
The machine is useful for creasing and cutting simultaneously. The machine come along with two pairs of shafts. The front pair is with cutting dies & near pair is with the creasing die. The lower shaft of each pair can be raised or lowered by revolving side wheel depending on ply of the board. For easy feeding additional two guides come with the machine.
Technical Specifications
Size
75"
85"
95"
Output (PM)
100 m
100 m
100 m
Min. Distance Between 2 discs
3"
3"
3"
Power
2 HP
3 HP
3 HP
Die Cutting Embossing & Creasing Machine
Profile:

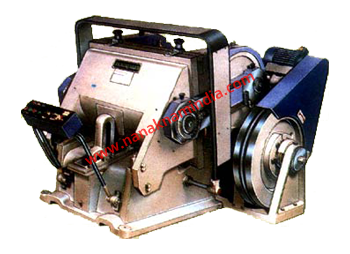

This Heavy Duty Platen Die Cutter Press is meant for creasing cutting and punching of card board as well as corrugated boxes. The machine is provided with an electro-magnetic clutch and brake.
Technical Specifications
Size
25 x 37"
32 x 42"
36 x 50"
42 x 62"
Platen Size
28" x 40"
35" x 45"
39" x 53"
45" x 65"
Strokes-minimum
1200
1000
1000
900
Strokes-maximum
1400
1200
1200
1000
Power HP
5 HP
7.5 HP
7.5 HP
10 HP
Eccentric Slotter
Profile:
Slotting and Corner cutting is done simultaneously over this machine. It is capable of slotting a number of sheets in one stroke. The distance between two slots and slot depth is adjustable. Two guides are provided to facilitate easy feeding and correct dimension.
Technical Specifications
Size
75"
85"
95"
Strokes P.M
30
30
30
Slot Depth
18"
18"
18"
Minimum Distance b/w slots
7"
7"
7"
Power H.P
3 HP
5 HP
5 HP
Box Stitcher Angular / Straight
Profile: To stitch board and corrugated board boxes.
