Hydraulic Edge Squaring Machine
| |
| Hydraulic Edge Squaring Machine |
 |
| Video Hydraulic Edge Squaring Machine |
|
| |
For Finshing of hard/ Perfect Bound Book, Centre stiched Magazines, Booklest, Exercise Note Books, Dictionaries Diaries & Exercise Note Books etc.
Square shape of spine simlar to perfect bound books. Open books flat wihout any damage to spine & Print on the spine section.
Square books are easy to handle for stacking and packing. Hydraulic press froms permanent square shape of spine for aesthetic and functional value addition at 900 cycle per safety precaution-Emergency switch aborts the operating cycle.
PLC based control panel for sequencing. optimum & simplified diagnostic.

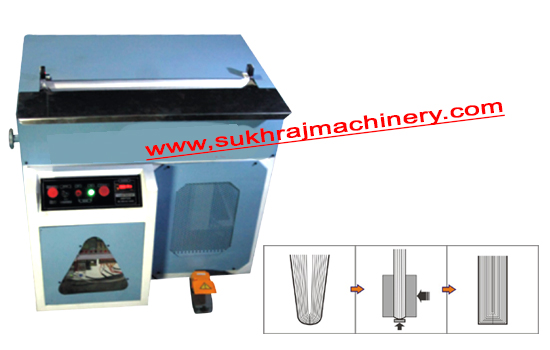

Squaring with Roller System
The Clamping stroke can be set as single stroke or double stroke.
1 to 4 copies (up to a maximum opening of 70mm) are inserted in the machine. the end - paper sticks perfectly to the spine is rubbed with the help of steel rollers to form a perfect square -shape and ensures covering material adheres to the spine. there by maintaining the right ange of the spine and consistency of all book -block |
| Technical Data |
| Model |
Unit |
ESM-70Cms |
ESM/-81 Cms |
| Book Block wide (Min - Max) |
mm |
650 |
700 |
| Spin thickness (Min - Max) |
mm |
5-70 |
5-70 |
| Book Height (Min - Max) |
mm |
Optional |
Optional |
| System Clamp pressure (Adjustable) |
Tons |
9 |
10 |
| Squre Pressure |
Kgs |
3500 |
3600 |
| Electrical Load/ Moter |
Kva/Hp |
2.25/3 |
2.25/3 |
| Hydraulic Oil Capacity |
Itrs |
80 |
90 |
| Overall Dimension (WXDXH) |
Cms |
103x90x96 |
104x96x96 |
| Net Weight (Approx.) |
Kgs |
1000 |
1100 |
| Electrical supply |
400/440 VAC 3 Phase or Single Phase 220 VAC |
|
| |
| |
 |
