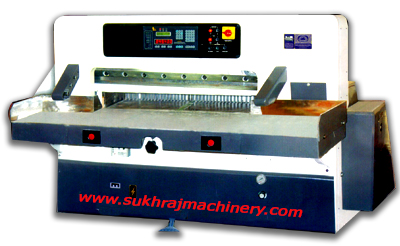

* Programme– the storage capacity of programme is 99 programmes and one programme capacity is 99 cuts each programme total memory 1500 cuts (which is a unique feature, unlike other makes). Accuracy of programme is 0.01mm or. 001 inch. Conversion in inch and mm. in fraction also possible.
* which is a unique cutting machine, widely acclaimed by printers all over the world.
* Frame, tables & knife holders are made of high – grade (Sturdy) cast iron capable of with standing heavy loads, stress & strain.
* Hydraulic Tank (Polar type) enclosed in the right pedestal to protect leakage of oil & saving space. Latest hydraulic power pack unit Double Hydraulic pressure cylinderLow pressure to check cutting line & High Pressure to make a cut.
* Adjustable variable clamping pressure of500 to 4500 kgs. Is provided more than the actual requirement.
* Air – cushion table for easy & friction free movement of Paper (heavy (Bulky) stock).
* All gears running in oil bath, which ensures, smoothness, less wear & tear & long- life.
* Reduction gear box – the worm gear drive has precision – ground worm this consumes less power than any other machine, level gauge for easily oil changing when needed.
* Infra Red sensing system for safety device. Angular type photo cell safety device & two push buttons (for Safety).
* Cutting Width 1150 mm. & Feed Depth 1150 mm.
* Auto and manual clamp pressure setting.
* Back gauge movement by High precision, recirculation ball screw for smooth movement with linear guide way.
* Our company is An ISO 9001:2008 certified Co.
* Special Feature of our Machine is that Our Machine has Hydraulic Clamp & Hydraulic Clutch (both Hydraulic) & Fail safe Brake.
* Cutting Line Indicator (Lighting provided on cutting edge, which is unique).
* Knife is easily changeable & adjustable by single operator.
* Extended side tables for stocking.
* Stainless steel strip on front table which keeps the front bed away from rust for years
* TwoPiece Back gauge Segments (for Accuracy).
Technical Datas
Product Code
NNI 95
NNI 115
NNI 132
Cutting width
37” (950 mm)
45” (1150 mm)
52” (1320 mm)
Clamp opening
4.5 (120 mm)
5.5” (140 mm)
5.5” (140 mm)
Minimum cut without false clump
1” (25 mm)
1” (25 mm)
1” (25 mm)
Speed of mechanical cut per minute
45
45
45
Blade thickness
0.5” (12.7 mm)
0.5” (12.7 mm)
0.5” (12.7 mm)
Power required
7 HP (5.25 kw)
7 HP (5.25 kw)
9.5 HP (7.15 kw)
Weight
3200 Kg.
4100 Kg.
4800 Kg.

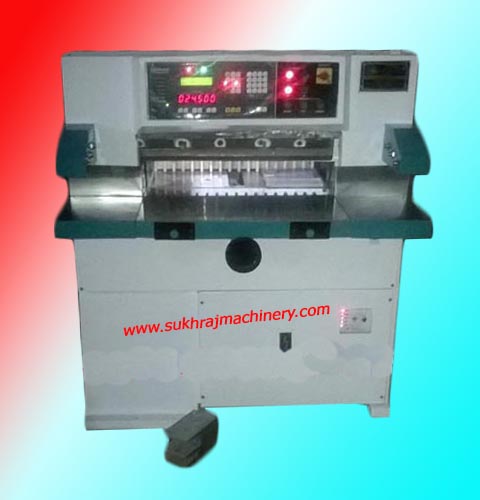

Mini Paper Cutting Machine
Video Mini Paper Cutting Machine
Salient Features
The paper cutting machine has features like automatic paper clamp, paper cut and paper send, high cut precision, low noise, and long life usage. Its design structure is easy to operate and insures safety. Its paper sending system adopts whole body slotless chrome worktable, linear guide and high-speed ball screw, so it can insure the correct position with a high speed. Both of the paper clamping device and paperguage device adopt hydraulic driven. The pressure is adjusted stepless. The big pressure adjusting range insure various paper cutting pressure needs. It is equipped with photo cell, double hands cutting button, knife light line, knife seat jogging devices. Therefore, it can insure the operator’s safety and convenient operation, high cutting precision, low noise, and long life using. This machine is suitable to cut Carbonless Paper, art paper, gray paperboard, etc. It is suitable for the printing press, school, advertisement agent, and company, etc. This machine has passed CE safety and the hydraulic system is also passed European safety standard.
Maximum Cutting Width: 660mm
Maximum Cutting Length: 660mm
Maximum Cutting Height: 80mm
Maximum Clamping Pressure: 8000N
Sending paper Motor Power: 2.2kw
Cutting Motor Power: 0.12kw
Electric Power: Single/Three Phase
Nett Weight: 650Kgs
External Dimensions: 1500x1000x1350mm
Semi Automatic Machine (With Electromagnetic Clutch and Power Gauge)
Video Semi Automatic Machine (With Electromagnetic Clutch and Power Gauge)
Design This sturdy machine is manufactured under the supervision of a team of comprising of highly experienced engineers. These machines are meant to with stand severest of strains and are ideally suited for Cutting Paper, Card boards and other sheet materials.
Electromagnetic Clutch and Brake System
Permits the machine to be controlled entirely by electrically Push buttons with full safety and eliminates the possibility of any time delay between driving and braking.
Auto Measure System Back Gauge easily operated by Power.
Lubrication Pump Central one shot lubrication.
Drive
Poser drive V-Belt is built on and does not take extra floor space.
Safety
Motor and fly wheel are protected by a metal guard which also improves the appearance of the machine.
Side Gauges
They reach almost up to the cutting line for feeding very narrow piles. Behind the cutting line the smallest strips 25mm when causing the pronged side of the narrow cutting rake.
Magnifying Lens
Provided with the machine it provides a clear reading on the measuring tape of the distance between the pile gauge and the cutting line.
Standard Accessories and Tools Two Double Sided Spanners, One oil can, One box spanner, One screw driver, Two cutting knives
Technical Specifications :
MODEL
NNI 83
NNI 92
NNI 109
Length of Cut
33" (83 cm)
36" ( 90 cm)
43" (109 cm)
Width of cut
33" (83 cm)
36" ( 90 cm)
43" (109 cm)
Height of Cut
4 1/2" ( 11.5 cm)
4 1/2" (11.5 cm)
05" (12.7 cm)
Cuts per minute
25 to 30
25 to 30
25 to 30
Power Required
2 H. P.
2 H. P.
3 H.P.
Space required
54 x 65 x 58"
78 x 78"
82 x 75 x 59"
Electromagnetic Fully Automatic Paper Cutting Machine
Vedio Electromagnetic Fully Automatic Paper Cutting Machine
Profile:
A Very Better Machine Featuring Fully Automatic functioning.
The Electromagnetic Clutch and Brake system allows you Total control over the Machine.
Comes with Standard Accessories to help you get the full potential of this Lion Heart Machine. Salient Features
Fully Automatic Paper Cutting Machine particularly designed for cutting of papers, board & other Sheet materials.
Basic Descriptions :
The very Sturdy construction of Electromagnetic Fully Automatic Paper Cutting Machine Equipped with SELF Clamping to be operated by switches.
Centralised one shot Lubrication System has been provided.
Standard Execution : Electromagnetic, Fully automatic Spring Clamp, Clamp beam can be operated by paddle with ease for Cutting line check up.
Electromagnetic Clutch and Brake System : Permits the machine to be controlled entirely with Electrically Push Buttons with full Safety and eliminates possibility of any time delay between driving and braking.
Auto Measure System :
Back gauge easily operated by power.
Safety :
Photo Cell barrier , in case of any interruption even by paper the machine will stop automatically. Safety alarm, Light and metal guard on motor plus fly wheel is provided with the machine.
Side Gauge : They reach almost up to the cutting line for feeding very narrow piles.
Magnifying Lens :
Provides a Clean Reading on the measuring tape of the distance between the Pile Gauge and the cutting Line.
Standard Accessories :
Two knives, one box spanner to change knife, one oil can and a set of spanners.
Salient Features
Design This sturdy machine is manufactured under the supervision of a team of comprising of highly experienced engineers. These machines are meant to with stand severest of strains and are ideally suited for Cutting Paper, Card boards and other sheet materials.
Electromagnetic Clutch and Brake System
Permits the machine to be controlled entirely by electrically Push buttons with full safety and eliminates the possibility of any time delay between driving and braking.
Auto Measure System Back Gauge easily operated by Power.
Lubrication Pump Central one shot lubrication.
Drive
Poser drive V-Belt is built on and does not take extra floor space.
Safety
Motor and fly wheel are protected by a metal guard which also improves the appearance of the machine.
Side Gauges
They reach almost up to the cutting line for feeding very narrow piles. Behind the cutting line the smallest strips 25mm when causing the pronged side of the narrow cutting rake.
Magnifying Lens
Provided with the machine it provides a clear reading on the measuring tape of the distance between the pile gauge and the cutting line.
Standard Accessories and Tools Two Double Sided Spanners, One oil can, One box spanner, One screw driver, Two cutting knives
Technical Specifications :
Technical Data
20 Cycle/min.
Width of the Cutting
70x100
Pile Height
260x370
Usable Table length in front of cutting line
8 mm
Smallest Reaminder strip
110 mm
Motor Power required
125 mm
Capacity
60 Kgs

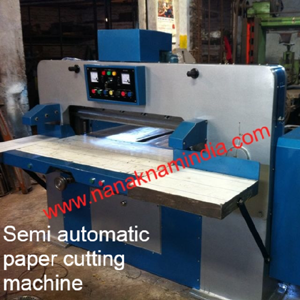

Semi Automatic Paper Cutting Machine
Vedio Semi Automatic Paper Cutting Machine
Profile:
" Simple in design, sturdy built anf totally enclosed for compactness to be operated at high speed. This machine ideally suited for cutting Paper, Card Board and other sheet materials. "
Salient Features
Friction / Multi Disc clutch system for maximum efficiency and minimum maintenance.
Rapid type hand clamp for smooth and easy operation. Foot Clamp operation is optional.
Easy replacement of knife. Fine adjustment of knife height by eccentric levers.
Adjustable back gauge for accurate parallelism with knife edge. Device provided with locking arrangement to avoid shift in the position of back gauge during operation.
To facilitate cutting of smallest strips of 25mm using the pronged side of the narrow cutting rake , the side gauges are positioned nearer to the cutting line.
Safety and saving of space.
Centralised lubrication of moving parts.
Illuminated cutting edge and measuring tape with magnifying lens for ease in fast setting. Essential Accessories : 2 Knives , cutting Sticks , Oil Can and Tools.
Optional : Foot Clamp , Motorised back gauge.
Technical Specifications :
TYPE
NNI 84
NNI 92
NNI109
Cutting Length
33" (830 mm)
36" (920 mm)
43" (1090 cm)
Cutting Width
33" (830 cm)
36" ( 920 cm)
43" (1090 cm)
Pile Height
4 1/2" ( 11.5 mm)
4 1/2" (11.5 mm)
5" (127 mm)
Cuts per minute
25 to 30
25 to 30
25 to 30
Power Load (HP)
2 H. P.
2 H. P.
3 H.P.
Electric Supply
400/ 440 V AC 59 Hz 3 Phase
---
---
Floor Space (WxDxH)
54 x 65 x 58"
56" x 78" x 69"
82" x 75" x 69"

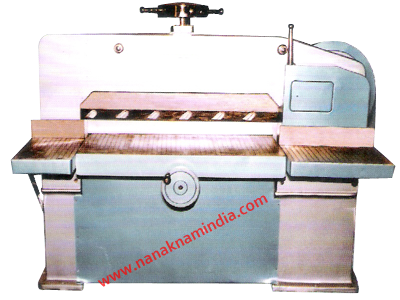

Semi Automatic High Speed Machine (With power back gauge and foot clamp)
Vedio Semi Automatic High Speed Machine (With power back gauge and foot clamp)
Profile:
Totally compact in size with electric drive and manual rapid clamping and mechanical feed. This new model of the machine can also be operated with foot.
Salient Features
Design This sturdy machine is manufactured under the supervision of a team of comprising of highly experienced engineers. These Machines are meant to with stand severest of strains and are ideally suited for Cutting Paper, Card boards and other sheet materials.
Friction Clutch:
Allowing through off at any position of the cutting cycle . This blade which cuts in a swinging movement can be set very fine by adjusting the lever.
Clamp Beam: Can be operated by paddle for easy cutting.
Auto Measure System
Back Gauge easily operated by Power.
Lubrication Pump :
Central one shot lubrication.
Drive : Poser drive V-Belt is built on and does not take extra floor space.
Safety :
Motor and fly wheel are protected by a metal guard which also improves the appearance of the machine.
Side Gauges :
They reach almost up to the cutting line for feeding very narrow piles. Behind the cutting line the smallest strips 25mm when causing the pronged side of the narrow cutting rake.
Magnifying Lens : Provided with the machine it provides a clear reading on the measuring tape of the distance between the pile gauge and the cutting line.
Standard Accessories and Tools : Two Double Sided Spanners, One oil can, One box spanner, One screw driver, Two cutting knives.
Technical Specifications :
MODEL
NNI 83
NNI 92
NNI 109
Length of cut
32" (81 cm)
36" ( 90 cm)
42" (107 cm)
Width of cut
32" (81 cm)
36" ( 90 cm)
42" (107 cm)
Height of Cut
4 1/2" ( 11.5 mm)
4 1/2" (11.5 mm)
05" (12.7 cm)
Cuts per minute
25 to 30
25 to 30
25 to 30
Power Required
2 H. P.
2 H. P.
3 H.P.
Space required
54 x 65 x 58"
78 x 78"
82" x 75" x 69"

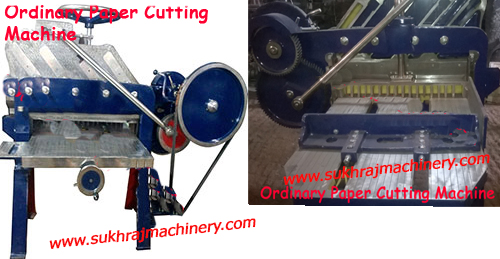

Paper Cutting Machine
Vedio Paper Cutting Machine
SPECIFICATIONS
Automatic Disengagement in the highest position of knife.
